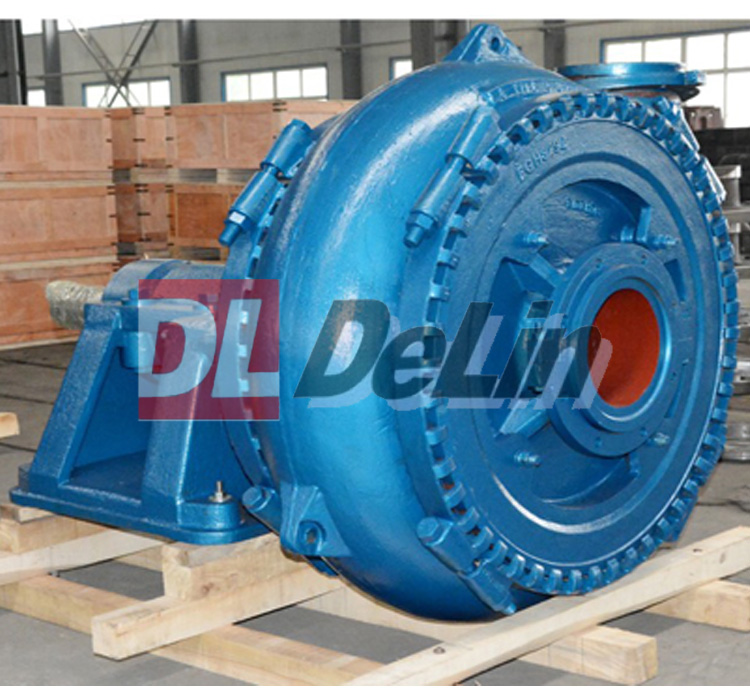

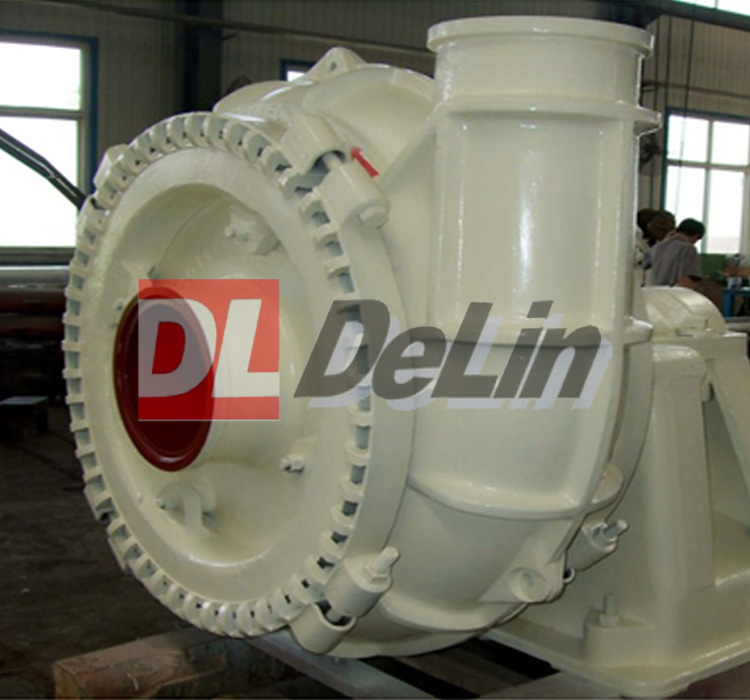

DG Series Gravel Pump
  • DG Series Gravel Pump
  • DG Series Gravel Pump
  • DG Series Gravel Pump
  • DG Series Gravel Pump
  • DG Series Gravel Pump
  • DG Series Gravel Pump

DG Series Gravel Pump

Main Parameter :

Size: 100-550mm

Capacity: 60-1060m3/h

Head: 10-110m


  • Description
  • Selection Chart
  • Performance Parameter
  • Installation Dimension

DG Series Gravel Pump

The construction of this DG series gravel pump is single-stage, single-suction, cantilevered and horizontal. This is a single casing pump. According to the driving type, it can be classified into two kinds of typical structures: self-carrying bracket type, and gear box with pump together. Lubricating type can adopt grease or oil lubrication. The gravel pumps are mainly used for continuous handling of the strong abrasive medium which contains too big solid to be pumped by a common pump. Type DGH pumps are high head gravel pumps. The pump wet parts are made of Ni-hard and high chromium wear-resistant alloy materials.The direction of rotation of the pump is clockwise, viewing from the drive end.


Applications of the Single Casing Pump

The mining gravel pump is used for river course, reservoir desalting, coastal reclamation, stretching, deep-sea mining and tailing acquisition etc.


Features of DG Series Gravel Pump

1. The structure of this DG series gravel pump is mainly single-casing and horizontal. The outlet direction can be positioned 360° easy to install.

2. Shaft Components adopt cylinder structure, which is convenient to adjust the gap between impeller and front wearing plate. The shaft uses grease lubrication.

3. Shaft Seal: expeller drive seal, packing seal, and Mechanical seal.

4. Broad Flow Passage & Good Anti-Cavitation Property & Highly Efficient Wear Resistance.

5. Driving Method: V Belt Drive, Elastic Shaft Coupling Transmission, Gear Box Drive, Fluid Coupling Transmission, Variable Frequency Drive Device and Thyristor Speed Control.

6. The wet parts are made of Ni-hard and high-chrome wear-resistant alloys with good anti-corrosive property.

7. Variable speeds and modals to ensure smooth operation. Additionally, Long service life and high operation efficiency offer reliable performance in a tough operating environment.


DG Series Gravel PumpModel: DG Series Gravel Pump
Speed (r/min): 300-1400
Capacity (l/s):10-1000
Head(m):3.5-72
Best efficiency: 30%-72%
NPSHr(m): 2.5-6
Shaft power Pa (KW):-
Allowed Max Particle Size(mm):82-254
Pump weight(kg):460-12250
Discharge Dia.(mm): 100-350
Suction Dia.(mm): 150-400
Seal type:
Gland Shaft Seal/Mehcanical Seal/Expeller Seal



IMPELLERVanes: 3Material of Liner:High chrome alloy/Rubber

Type:CloseMaterial of Casing:High chrome alloy

Material:High chrome alloy/RubberTheory:Centrifugal pump

Diameter(mm): 378-1220Structure:Single-stage pump


DG Series Gravel Pump

TypeCapacity(Q)Head(H)Speed(n)Max. Eff.NPSHSuction Dia.Discharge Dia.Max. Particle Size AllowedWeight
(m³/h)(l/s)(m)(r/min)(%)(m)(mm)(mm)(mm)(kg)
DG150X100-D36~25210~703.5~51600~140030~502.5~3.515010082460
DG200X150-E137~57638~16010~48800~140050~603~4.52001501271120
DG250X200-S216~97960~27213~50500~100045~653~7.52502001782285
DG300X250-G360~1512100~42011~58400~85050~702~4.53002502204450
DG350X300-G504~3168140~8806~66300~70060~682~83503002405400
DG450X400-T864~3816240~10609~48250~50060~723~645040025410800
DG250X200H-S396~1296110~36010~80500~95060~722~52502001803188
DG300X400H-T612~2232170~62028~78350~70060~722~83002502104638
DG400X350H-TU720~3600200~100020~72300~50060~723~640035023012250



DG Series Gravel PumpDG Series Gravel Pump


ModalOutline Dimension
ABCDEFGD1E1G1HYIN-dLMN
DG150X100-D10064924322133875289---54164654-Ф22330203260
DG200X150-E12866225462575483365---75222804-Ф29392295352
DG250X200-S1720920760----64070780902801204-Ф35378330416
DG300X250-G20101207851----749648761523561404-Ф41473368522
DG350X300-G20961207851----749648761523561404-Ф41502424610
DG450X400-T23201150900----8808010401253501504-Ф48538439692
DG250X200H-S1774920760----64070780902801204-Ф35455330475
DG300X400H-T20621219851----749648761523561404-Ф41496400605
DG400X350H-TU236714601200----8609510501503501504-Ф70649448765


ModalOutline DimensionIntake Flange DimensionOutlet Flange DimensionWeight
PQRSTUVWD0D2n-d1n0n2n-d2
DG150X100-D330343333216-853052608-Ф192542104-Ф19460
DG200X150-E457405292954-683683248-Ф193052608-Ф191120
DG250X200-S4505334841-102864574068-Ф223683248-Ф192285
DG300X250-G8516654849238-10852747012-Ф224574068-Ф224450
DG350X300-G8517874848121-8105524958-Ф2252747012-Ф225400
DG450X400-T6509216464-27481070564116-Ф2564058412-Ф2510800
DG250X200H-S4506204842-206864574068-Ф223683248-Ф193188
DG300X400H-T851800606040-1085334768-Ф294834328-Ф254638
DG400X350H-TU90010087282-12081065060012-Ф2860054012-Ф2812247
